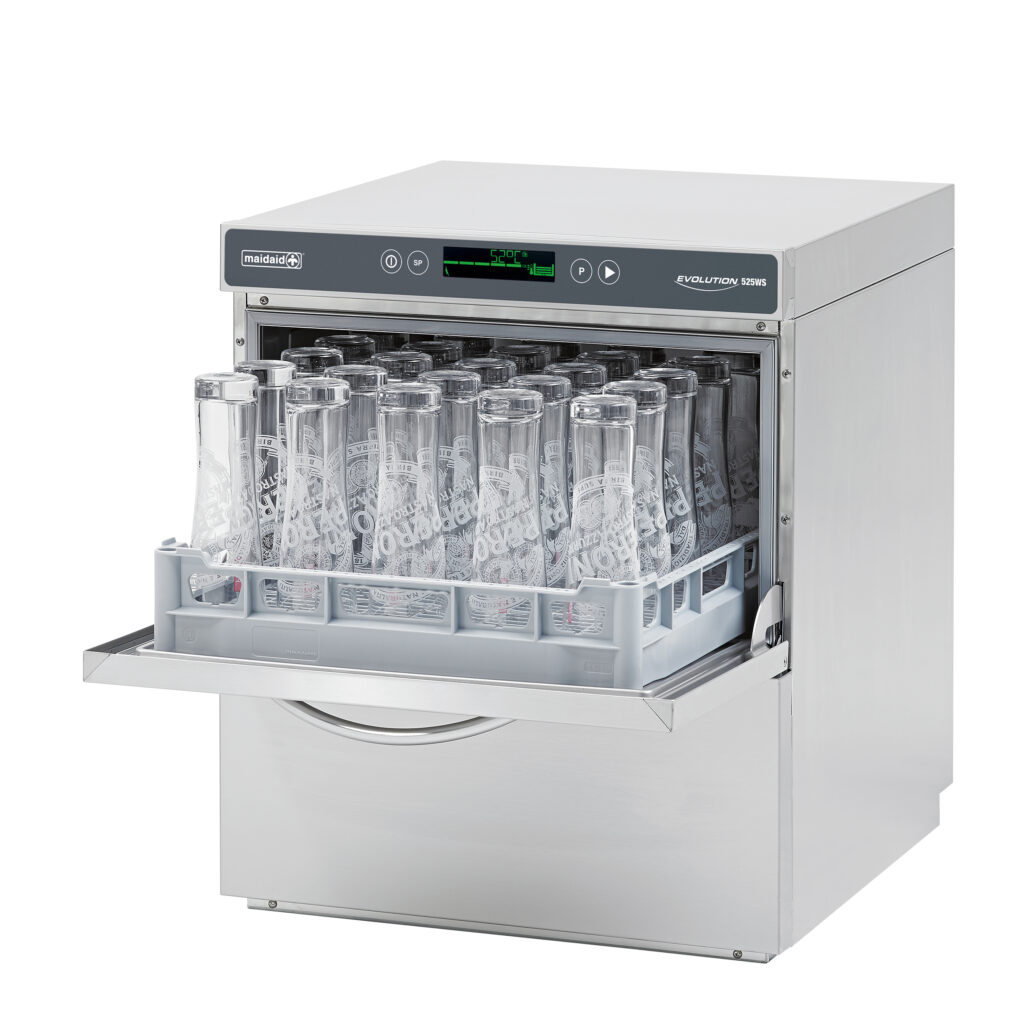

Maidaid Evolution 525 WS Drain Pump Glasswasher with Internal Water Softener

Product Details

External Dimensions: 600mm W x 630mm D x 710mm H (excludes adjustable feet which add 10-20mm)

6.5kW 30 Amps / 4.5kW 20 Amps / 2.6kW 13 Amps 230V Single Phase. If supplied 13 amp machine will come fitted with moulded plug and cable.

20 amp machines will be supplied with original cable and without plug, standard 13 amp UK 3 pin plugs will be unsuitable for cable supplied

500mm x 500mm basket

Drain Pump

Useable Height: 265mm

Suitable for hot (max 50°C) or cold water supply, typically at 2 to 4 bar dynamic supply pressure, refer to specification sheet for individual requirements

Wash temperature 60°C (adjustable)

Rinse temperature 82°C (adjustable)

Cycle times between 90 a& 715 secs, including special cycles

Cycle times can be tailored to site requirements

Requires a waste up stand for correct operation

Restrictive waste connections should be avoided for all installations

Improved wash action from quick release parallel wash & rinse arm design

Stainless steel scrap tray filters supplied as standard

Improved triple wash tank filtration system

Increased range of water hardness settings

Four button control fascia with special programmes button, operational self-diagnostics & alarms menu

Internal continuous water softener

Breaktank

Reduced water consumption

Comprehensive automatic self-cleaning at end of service

Selectable energy saving mode

Selectable thermostop ensures optimum rinse temperatures

Fully double skinned minimising both acoustic output and reduced heat-loss

Patented dual flow wash pump with soft start - reducing power consumption whilst retaining wash efficiency

Full door seal and door ajar facility

Moulded wash tank for easy cleaning

Moulded rack guide

Accurate detergent & rinse aid peristaltic dosing pumps

Priming and dosing of chemicals enabled from fascia controls

Supplied with two open cup/glass racks

Can be supplied 3 phase if required

If supplied 13 amp machine will come fitted with moulded plug and cable (machines configured for 13 am supply or fitted to cold water supply will not be capable of running repeated short cycles, the cycle time will automatically be extended to allow recovery of correct operating temperatures). 20 amp machines will be supplied with original cable and without plug. Standard 13 amp UK 3 pin plugs will be unsuitable for cable supplied.

Free next day delivery available - please contact us for details

2 Years Warranty

*FINANCE PLANS NOW AVAILABLE ON ALL MAIDAID EQUIPMENT*

Model: Evolution 525 WS / Evolution525WS / EVO525WS / EVO 525 WS

Please note that all products are shipped directly from the manufacturer / supplier so contact us if you wish to check on stock availability

THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.
