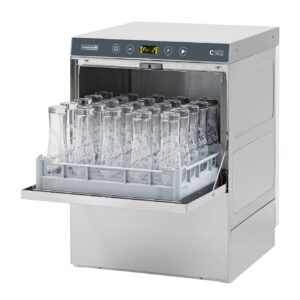

Maidaid C502 Gravity Drain Glasswasher

Product Details

External Dimensions: 580mm W x 610mm D x 810mm H (excludes adjustable feet which add 10-20mm)

6.5kW 30 Amps / 4.5kW 20 Amps / 2.6kW 13 Amps 230V Single Phase

500mm x 500mm basket

Gravity Drain

Can be supplied 3 phase - please contact us for details

Suitable for hot (max 50°C) or cold water supply, typically at 2 to 4 bar dynamic supply pressure (machines configured for 13 amp supply or fitted to cold water supplies will not be capable of running repeated short cycles, the cycle time will automatically be extended to allow recovery of correct operating temperatures).

Machines will be supplied 30 amp supply as standard. If supplied 13 amp machine will come fitted with moulded plug and cable. 20 amp machines will be supplied with original cable and without plug.  Standard 13 amp UK 3 pin plugs will be unsuitable for cable supplied.

Wash temperature 60°C (adjustable)

Rinse temperature 65°C (adjustable)

Maximum useable height: 340mm

Four button bright LED display with soft touch controls, twin traffic lights giving instant status updates & operational self-diagnostics

Alarms menu with hi-level information retrieval

Improved wash action from quick release parallel wash & rinse arm design

Surface scrap tray filters

Three standard cycle time options with further options available

Cycle times can be tailored to site requirements

Automatic self-cleaning at end of service

Selectable energy saving mode

Selectable thermostop ensures optimum rinse temperatures

Accurate detergent & rinse aid peristaltic dosing pumps

Patented dual flow wash pump reducing power consumption whilst retaining wash efficiency

Moulded wash tank for easy cleaning

Moulded rack guide giving partial double skin

Supplied with two open cup/glass racks

Restrictive waste connections should be avoided for all installations

Free next day delivery available - please contact us for details

Drain pump cannot be retro fitted

Supersedes model C501

2 Years Warranty (3 Years for Public Sector - please contact us for details)

PLEASE NOTE THAT A WATER SOFTENER WILL BE REQUIRED

*FINANCE PLANS NOW AVAILABLE ON ALL MAIDAID EQUIPMENT*

Please note that all products are shipped directly from the manufacturer / supplier so contact us if you wish to check on stock availability

THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.

Downloads

C502 Spec. Sheet

C Range Glasswashers Brochure

Product Video
