SKU: NAG161BV
£15,500.00 inc VAT/£12,916.67 ex VAT
External Dimensions: 852mm W x 795mm D x 1840mm H
Capacity: 6x 1/1 GN + 10x 1/1 GN / 5x EN (600 x 400) + 8x EN (600 x 400)
Gas Nominal Heating Output: 35kW / 30,100 kcal
Total Electric Power: 1.4kW (1N AC 230 V – 50/60 Hz)
Direct Steam
Will require a Water Filter – Please contact us for advice on which type
Any questions? Need assistance? Call our helpline on 01603 756134
External Dimensions: 852mm W x 795mm D x 1840mm H
Capacity: 6x 1/1 GN + 10x 1/1 GN / 5x EN (600 x 400) + 8x EN (600 x 400)
Gas Nominal Heating Output: 35kW / 30,100 kcal
Total Electric Power: 1.4kW (1N AC 230 V - 50/60 Hz)
Direct Steam
Distance between layers: 70mm (GN) / 90mm (EN 600 x 400)
Number of meals: 110 / 230
10" HD colour touch screen
Multilevel cooking mode
Just-in-Time cooking mode
Intuitive and easy to use, large image based icons for easy operation
Cook multiple items at the same time, with oven alerting when each item is ready
Cook multiple items at the same time, all being ready together. Oven will alert operator when to put each item into the oven.

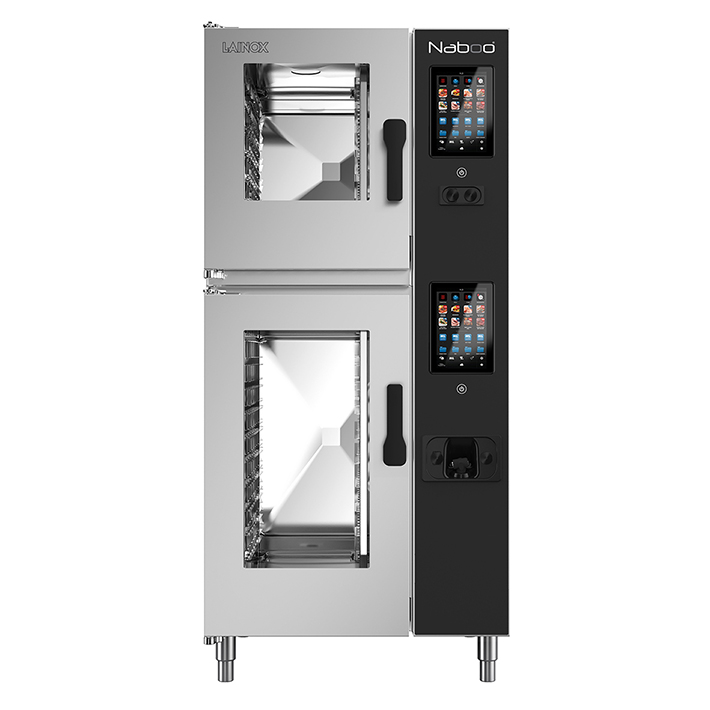

The NAG161BV gas direct steam combination oven features an NAG061BV 6 shelf combi stacked on top of an NAG101BV 10 shelf model, all in one convenient unit. Each oven has it's own 10" full colour touch screen that is easy to use and can be configured to suit every kitchen's requirements. Popular menu items can be placed onto the home screen so can be started with a single touch, while recipes can be organised in folders, making them easier to access for all users. The three cooking modes - convection, steam and combination - can be accessed directly from the home screen too, making it easy to start cooking quickly. Multilevel cooking enables menu items with different cooking times to be cooked at the same temperature, with the oven's intelligence able to identify other saved recipes that can also be cooked under these parameters.
Unlike traditional stacked models, the control panel for the bottom oven has been moved higher, locating it in a much more convenient position for the user. The top shelf of the top oven is also significantly lower than traditional stacked models (1870mm), making it easier to reach and use the top oven to full capacity. An optional kit can be purchased which lowers the height of the unit even more to 1730mm, with the top shelf only 1600mm from the floor.
There are no limits to the number of cooking programmes that can be stored. Cooking advice and notes can be added to stored programmes. Images and photos can also be added to help quickly and easily identify dishes. these can be added from an extensive gallery of images or uploaded from USB.
The top oven has a capacity of 6 x 1/1 GN trays and the bottom 10 x 1/1 GN, both with 70mm between shelves. The unit is supplied with an automatic washing system and has an inbuilt, retractable hand shower, making it easy to keep the oven chambers in optimum condition. The autowash systems for both ovens are served by the same 10L container of detergent.
This unit can be connected to wifi, allowing users to upload / download recipes (both their own and from a dedicated chef's portal which contains recipes and other useful information). This is an easy way to share recipes between different sites to ensure consistency across multiple outlets. It also means that any maintenance / service issues regarding the control panel can be initially identified remotely, and in many cases, repaired remotely.
Will require a Water Filter - Please contact us for advice on which type
2 Years Warranty (4 Years on Electronic Parts)
Please note that all products are shipped directly from the manufacturer / supplier so contact us if you wish to check on stock availability
THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.
