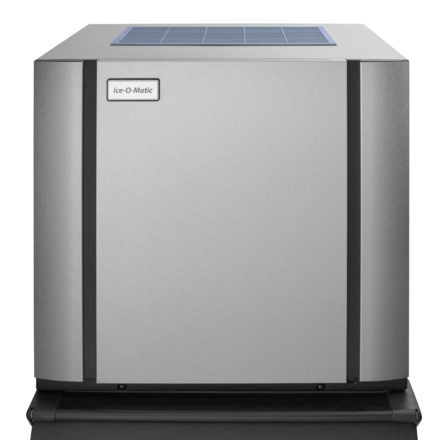

Ice-O-Matic CIM0325 Modular Cube Ice Maker

External Dimensions: 565mm W x 616mm D x 540mm H

Ice Production 21°C Air 10°C Water: 132kg per 24 hrs

Ice Production 32°C Air 21°C Water: 100kg per 24 hrs

Modular Cube Ice: Full Cube = 22mm W x 22mm D x 22mm H / Half Cube = 10mm W x 22mm D x 22mm H

3 Years Parts and Labour Warranty (5 Years on compressor and evaporator)

Replaces ICE0325

Any questions? Need assistance? Call our helpline on 01603 756134

Product Details

External Dimensions: 565mm W x 616mm D x 540mm H

Ice Production 21°C Air 10°C Water: 132kg per 24 hrs

Ice Production 32°C Air 21°C Water: 100kg per 24 hrs

Modular Cube Ice: Full Cube = 22mm W x 22mm D x 22mm H / Half Cube = 10mm W x 22mm D x 22mm H

Will Require a Filter

Min incoming water temperature: 4.5°C (40°F)

Max incoming water temperature: 38°C (100°F)

Min incoming water pressure: 1.4 bar (20psi)

Max incoming water pressure: 4.1 bar (80psi)

13A single phase

Net weight: 68kg

Optional external drain pump requires its own power supply. They are fitted to the ice machine in factory which will add a few days to the lead time. Please contact us for an estimated delivery date.

3 Years Parts and Labour Warranty (5 Years on compressor and evaporator)

Air cooled

Replaces ICE0325

Bin and Adaptor Kit Combinations:

B25, B40, B55 Bins = KBT19 Adaptor Kit

B42 Bin = No Adaptor Kit Required

B110 Bin = KBT23 Adaptor Kit

Ice-O-Matic Modular Cube Ice Makers are highly reliable and are built with a carefree operation and maintenance system. They produce pure, crystal-clear cube ice for the most demanding foodservice and hospitality needs. They are also perfect on a storage bin or dispenser and are available in either 'Half' or 'Full' cube options.

Model: CIM0325F / CIM0325FA (Full Cube) / CIM0325H / CIM0325HA (Half Cube)

Please note that all products are shipped directly from the manufacturer / supplier so contact us if you wish to check stock availability.

THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.
