Marco POUR’D Concentrate Cold Coffee Dispense

Product Details

3b (3 button) Font Dimensions: 125mm W 168mm D x 287mm H (Includes drip tray)

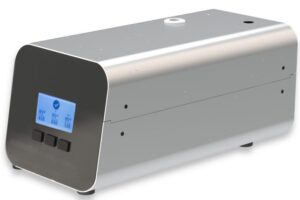

Control Box Dimensions: 157mm W 399mm D x 140mm H (width not including tubing)

Power (Control Box): 230V 40W

Plumbing (Control Box): 3/4”BSP

L/HR: 126L

POUR'D can dilute / dispense: Non-Dairy Milks, Syrups, Concentrates, Juice (no pulp, <700 CPS), RTD Cold Drinks

Unsuitable for: Dairy Milk, Thick Syrup/Molasses (>700 CPS), Kombucha, Powder, RTD Hot Drinks

Includes Control Box, 3 Button Font and Drip Tray Only. Mix UC3 Water Boiler and FRIIA/FRIIA Lite models can be added to the system as additional extras.

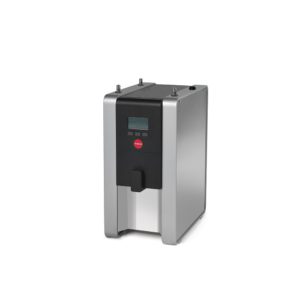

Optional Boiler - Mix UC3 - To dilute with hot water and to add separate hot water

Optional Chiller or Chiller/Carbonator - FRIIA and FRIIA Lite models - To dilute with either chilled or sparkling water and to add separate chilled or sparkling water

POUR'D 3 Button Concentrate is the quickest, easiest, and most flexible cold beverage solution available. POUR'D is compatible with any syrup or  concentrate coffee source and can be programmed for up to three beverage sizes. POUR'D 3 Button Concentrate also gives users the choice to add a separate hot or cold water source. POUR'D allows users to dispense a range of the following beverages:

• Cold beverage from concentrate (up to 3 sizes)
• Sparkling beverage from concentrate (up to 3 sizes)
• Shot of beverage concentrate
• Separate line of hot water
• Syrup based beverages such as lemonades or iced-teas.

Recommended Dilution Rations:

5:1 (Hot)

1:1 - 30:1 (Cold/Sparkling)

POUR’D can be used with: Concentrates & Syrups with Max Viscosity of 700 CPS

Minimum 4ml concentrate to 125ml final beverage

Code: 5000940C3B

2 Years Warranty

Please note that all products are shipped directly from the manufacturer / supplier so contact us if you wish to check on stock availability.

THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.

Downloads

POUR'D Specification Sheet
