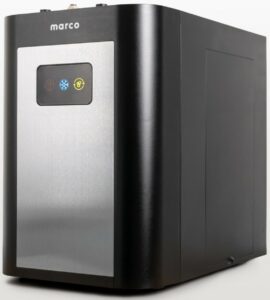

Marco FRIIA Lite HCS Hot, Cold and Sparkling Water Dispenser

Product Details

3b (3 Button) Font: 30mm W x 138mm D x 286mm H w/o drip tray (247mm tap to counter); 120mm W x 168mm D including drip tray

Chiller/Carbonator: 279mm W 468mm D x 420mm H

Mix UC3 Boiler: 210mm W 385mm D x 444mm H

Cups Per Hour: 60 (Chilled) / 156 (Hot)

Output: 12L/hr based on incoming water temp of 15°C and output water temp of 5-7° (Chilled) / 28L/hr (Hot)

Plumbing Reqs: 3/4” BSPM Working Water Pressure: 1 Bar (14.5psi) to 4 Bar (58psi) (Chilled) / 3/4” BSP (Hot)

A minimum operating pressure of 2 bar or 28 psi downstream of filter is required for optimum output l/min

Boiler Power: 2.8kw

Boiler Immediate Draw Off: 3L

Compressor Power: 129W

Refrigerant: R600a

Counter cut-outs required

Includes Drip Tray

Internal or external CO2 source - Marco recommend Sodastream 60L units which are available in most local hardware stores or online

In-built cold water filter

Code: 5000203

Recommended sanitisation products available: internal water cooler sanitising solution 1l and chiller best service cartridge - please contact us for details

PLEASE NOTE THAT FILTERS ARE RECOMMENDED

You will need to acquire your own CO2 gas bottle - searching for a 5kg bottle is recommended

2 Years Warranty

Please note that all products are shipped directly from the manufacturer / supplier so contact us if you wish to check on stock availability.

THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.

Downloads

FRIIA Lite HCS Specification Sheet
