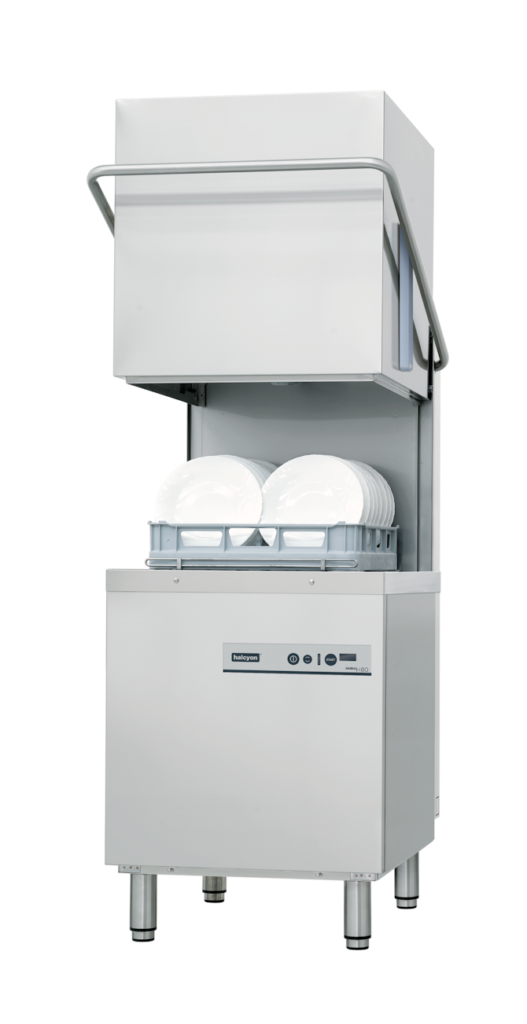

Maidaid Halcyon Amika AMH80 D Pass Through Drain Pump Glasswasher

Name: Maidaid Halcyon Amika AMH80 D Pass Through Drain Pump Glasswasher
Brand: Maidaid
SKU: AMH80 D
Price: 3456 GBP
Availability: InStock

View Larger

PLEASE NOTE THAT THIS IS A GLASSWASHER ONLY AS IT DOES NOT HAVE A BREAK TANK

External Dimensions: 640mm W x 745mm D x 1500mm H

6.5kW 30 Amps / 4.5kW 20 Amps 230V single phase

500mm x 500mm basket

Drain Pump Model

Free next day delivery available – please contact us for details

Free site surveys and and training often available – please contact us for details

*FINANCE PLANS NOW AVAILABLE ON ALL MAIDAID EQUIPMENT*

View product video View full product details

Any questions? Need assistance? Call our helpline on 01603 756134

Product Details

PLEASE NOTE THAT THIS IS A GLASSWASHER ONLY AS IT DOES NOT HAVE A BREAK TANK

External Dimensions: 640mm W x 745mm D x 1500mm H

6.5kW 30 Amps / 4.5kW 20 Amps 230V single phase

Can be supplied for 3 phase operation - please contact us if required

500mm x 500mm basket

Drain Pump Model

Waste up stand required for correct operation

Suitable for hot (max 50°C) or cold water supply, typically at 2 to 4 bar dynamic pressure (machines fitted to cold water supply will not be capable of running repeated short cycles, the cycle time will automatically be extended to allow recovery of correct operating temperatures). It is strongly recommended that for busy sites to achieve optimum performance that machines are installed on hot fill (max 50°C).

Wash temperature 60°C (Adjustable)

Rinse temperature 82°C (Adjustable)

Maximum useable height: 435mm

Cycle time: 90/180 seconds

Restrictive waste connections should be avoided for all installations

Supplied with 1 pegged plate rack, 1 open cup/glass rack and cutlery insert

Machines supplied for 30 amps as standard. 20 amps machines will be supplied with original cable and without cable.

Composite surface scrap trays optional - contact us for details

Free next day delivery available - please contact us for details

Free site surveys and and training often available - please contact us for details

*FINANCE PLANS NOW AVAILABLE ON ALL MAIDAID EQUIPMENT*

1 Year Warranty

Will require hard-wiring

PLEASE NOTE THAT A WATER SOFTENER WILL BE REQUIRED

Model: AMH80 D / AMH80D

Supersedes model AM 80 XLD / AM80XLD

Please note that all products are shipped directly from the manufacturer / supplier so contact us if you wish to check on stock availability

THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.
