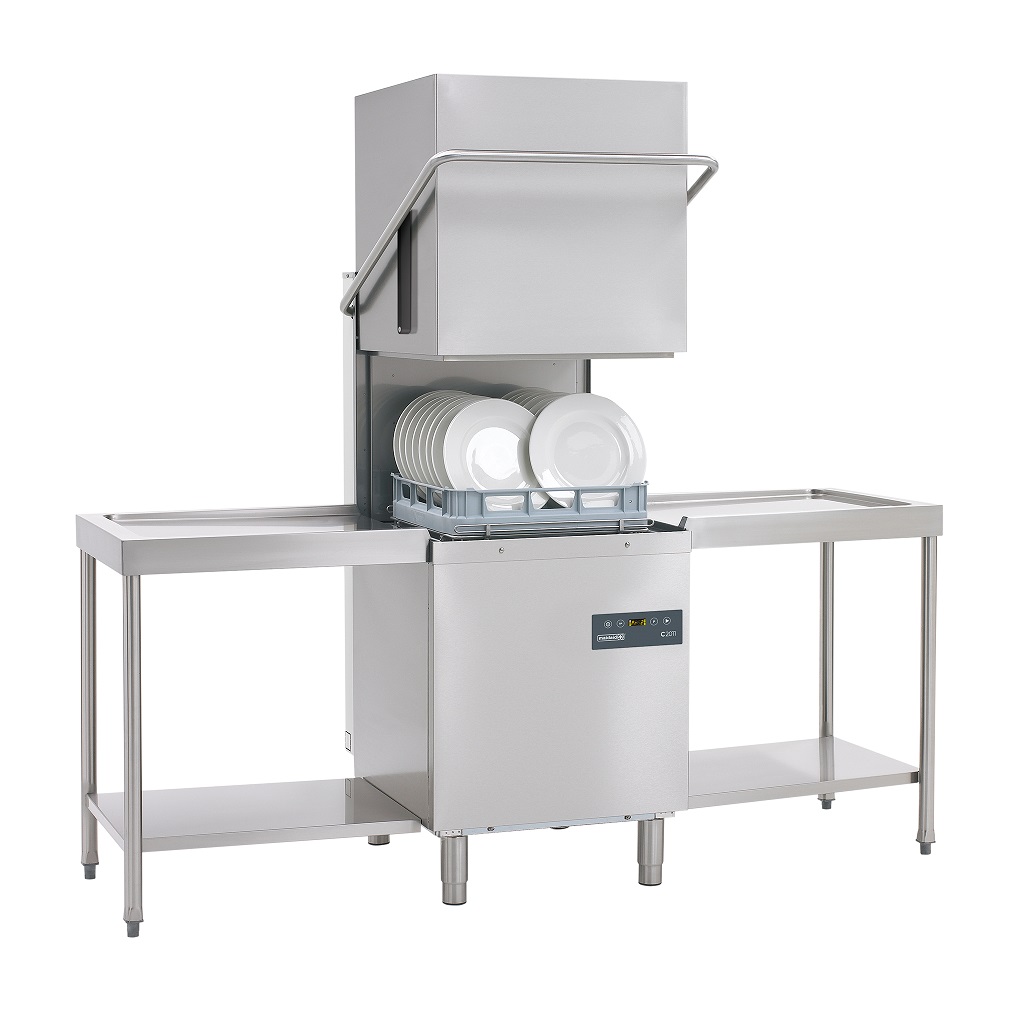

Maidaid C2011D Drain Pump Pass Through Dishwasher

Product Details

External Dimensions: 640mm W x 745mm D x 1500mm H (height adjustable from 1500mm to 1560mm when hood is closed, 1980mm to 2040mm when hood is open. Heights include adjustable legs)

6.5kW 30Amps /4.5kW 20Amps, 230V single phase. (Will be supplied as 30Amps as standard)

Can be supplied 3 phase if requested

Drain Pump

Waste up stand required for correct operation

Breaktank

Suitable for hot (max 50°C) or cold water supply, typically at 2 to 4 bar dynamic supply pressure (machines fitted to cold water supply will not be capable of running repeated short cycles, the cycle time will automatically be extended to allow recovery of correct operating temperatures). It is strongly recommended that in order to achieve optimum performance machines are installed on hot water fill (max 50°C).

Wash temperature 60°C (adjustable)

Rinse temperature 82°C (adjustable)

Maximum useable height: 435mm

Cycle times between 70 & 240 secs

Increased usable height

Four button bright LED display with soft touch controls, twin traffic lights giving instant status updates & operational self-diagnostics

Alarms menu with hi-level information retrieval

Improved wash action from quick release parallel wash & rinse arm design

Easy lift soft glide hood system

Three standard cycle time options with further options available

Cycle times can be tailored to site requirements

Reduced water consumption

Automatic self-cleaning at end of service

Selectable energy saving mode

Selectable thermostop ensures optimum rinse temperatures

Patented dual flow wash pump, reducing power consumption whilst retaining wash efficiency

Moulded wash tank for easy cleaning

Surface scrap tray filters

Accurate detergent & rinse aid peristaltic dosing pumps

Supplied with one pegged rack, one open cup/glass rack & cutlery insert

Restrictive waste connections should be avoided for all installations

PLEASE NOTE THAT TABLING IS NOT INCLUDED WITHIN THE PRICE

Free next day delivery available - please contact us for details

Free site surveys and and training often available - please contact us for details

*FINANCE PLANS NOW AVAILABLE ON ALL MAIDAID EQUIPMENT*

2 Years Warranty

PLEASE NOTE THAT A WATER SOFTENER WILL BE REQUIRED

Replaced model C1011D

Please note that all products are shipped directly from the manufacturer / supplier so contact us if you wish to check on stock availability

THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.

Downloads

C2011D Spec. Sheet

C Range Pass Through Dishwashers
