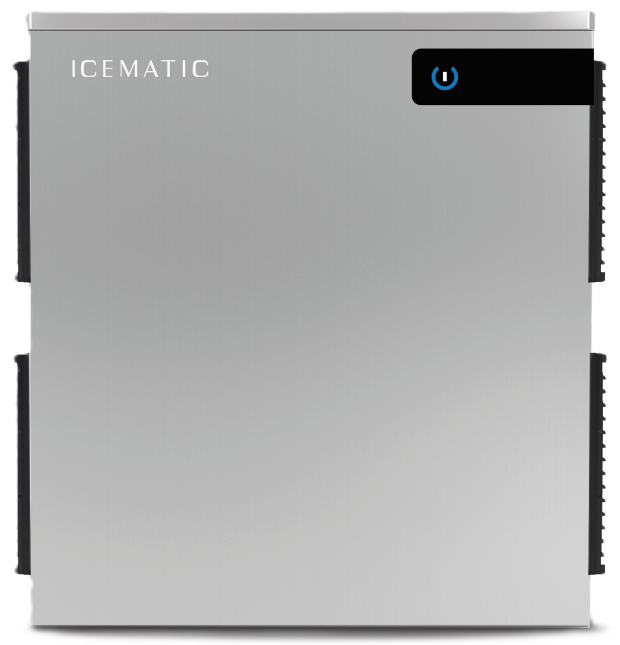

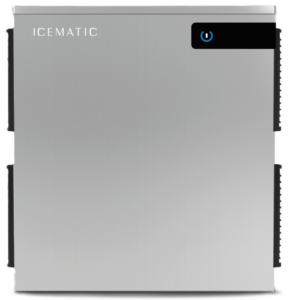

Icematic B505 Modular Ice Flaker

Product Details

External Dimensions: 670mm W x 670mm D x 710mm H

Standard Voltage: 16Amps, 220-240V/1N/50Hz

Production per 24hr*: B505 A (R290 Refrigerant; Air Cooled): 470kg / B505 W (R290 Refrigerant; Water Cooled): 429kg / B505 F A (R452a Refrigerant; Air Cooled): 450kg / B505 F W (R452a Refrigerant; Water Cooled): 450kg

Bin and Adaptor Kit Combinations:

MG405 = KBM405 adaptor cover

MG505 = KBM505 adaptor cover

Models: B505 A (R290 Refrigerant, Air Cooled) / B505 W (R290 Refrigerant, Water Cooled) / B505 F A (R452a Refrigerant, Air Cooled) / B505 F W (R452a Refrigerant, Water Cooled)

Berries Series

My Ice App as standard

Stainless steel body

Easy inspectionable interior

Capacitive touch control for stand-by and reset

Compatibility with Icematic storage bins

USB access with parameters memory

Please note that it does not come with a UK 13amp plug

Optional extras: Ozone sanitization, Cleaning kit, Legs kit, Drain-pump kit, Special voltages - please contact us for details

Adjustable ice humidity via MyIce app

2 Years Parts Only Warranty

Berries Series: New range of granular icemakers, with capacity up to 1.000 Kg/day. Granular ice is generated by a vertical cylindrical evaporator, with a screw conveyor, that scrapes the internal surface of the ice pulling it to the outlet of the machine, where ice-crunching system is located. This system guarantees even ice quality and a minimal residual water. The Berries line includes self-contained models and bin-combined versions, to be paired to the vast selection of Icematic bins.

The Ice: Granular ice is an asset in many sectors, thanks to its multiple uses: from food conservation and display, to cocktails preparation, to applications is SPAs, in the world of cosmetics, in medical and hospital environments. This type of very wet ice is particularly appreciated also in the bakery sector. Granular ice is very easy to handle, stock and weigh. Its peculiarity is the high residual-water contain that, depending on model, may vary from 25% to 15%.

*Specifications as per 2024 brochure.

Imported from Italy so please check for availability and lead time

*MUST BE INSTALLED BY A FULLY QUALIFIED REFRIGERATION ENGINEER.

THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.

Downloads

B505 Spec. Sheet

B505 F Spec. Sheet
