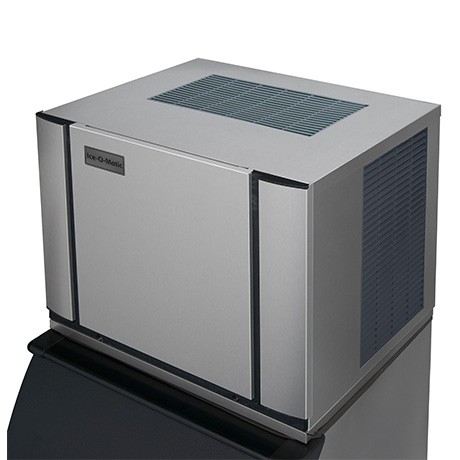

Ice-O-Matic CIM0535 Modular Cube Ice Maker

Product Details

External Dimensions: 768mm W x 616mm D x 540mm H

Ice Production 21°C Air 10°C Water: 227kg per 24 hrs

Ice Production 32°C Air 21°C Water: 181kg per 24 hrs

Modular Cube Ice: Full Cube = 22mm W x 22mm D x 22mm H / Half Cube = 10mm W x 22mm D x 22mm H

Will Require a Filter

13Amps

Min incoming water temperature: 4.4°C (40°F)

Max incoming water temperature: 38°C (100°F)

Min incoming water pressure: 1.4 bar (20psi)

Max incoming water pressure: 4.1 bar (80psi)

Net weight: 70.3kg

Optional external drain pump requires its own power supply. They are fitted to the ice machine in factory which will add a few days to the lead time. Please contact us for an estimated delivery date.

3 Years Parts and Labour Warranty (5 Years on compressor and evaporator)

Optional SafeIce Ice Machine Cleaning System: SafeIce generates a reactive gas mixture which binds to and eliminates microbes on contact. Photoplasma gas is heavier than air and cascades into your bin, sterilizing your entire machine from the evaporator plate down. Please note that the addition of this will add approx. 5-7 working days to the lead time. Click Here For Video. Please contact us for pricing and to add to your order.

Air cooled

Bin and Adaptor Kit Combinations:

B25, B40, B55 Bins = No Adaptor Kit Required

B110 Bin = BPF1 (KBT5) Adaptor Kit

The Elevation Series - Born at a standard well above sea level. The new and groundbreaking Elevation Series from Ice-O-Matic is designed to simplify life. These modular cube ice machines are easy to clean, easy to service, simple to operate, and environmentally responsible without sacrificing productivity. The Elevation Series provides clean, dependable ice from an astonishingly user-friendly and energy-efficient machine designed to work as hard as you.

Model: CIM0535F / CIM0535FA (Full Cube) / CIM0535H / CIM0535HA (Half Cube)

LIMITED TIME OFFER IF PURCHASED WITH B50 BIN - PLEASE CONTACT US FOR DETAILS

Please note that all products are shipped directly from the manufacturer / supplier so contact us if you wish to check stock availability.

THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.

Downloads

CIM0535 Spec. Sheet

SafeIce Spec. Sheet
