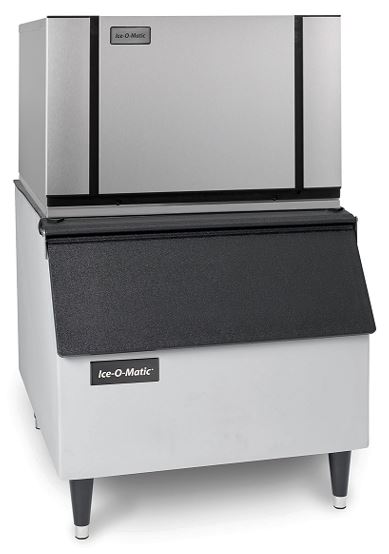

Ice-O-Matic CIM0335 Modular Cube Ice Maker with B25 Bin

CIM0335 Modular Cube Ice Maker:

External Dimensions: 768mm W x 616mm D x 540mm H

Ice Production 21°C Air 10°C Water: 132kg per 24 hrs

Ice Production 32°C Air 21°C Water: 100kg per 24 hrs

Modular Cube Ice: Full Cube = 22mm W x 22mm D x 22mm H / Half Cube = 10mm W x 22mm D x 22mm H

3 Years Parts and Labour Warranty (5 Years on compressor and evaporator)



B25 Storage Bin:

762mm W x 787mm D x 711mm H

110kg Storage

Any questions? Need assistance? Call our helpline on 01603 756134

Product Details

CIM0335 Modular Cube Ice Maker:

External Dimensions: 768mm W x 616mm D x 540mm H

Ice Production 21°C Air 10°C Water: 132kg per 24 hrs

Ice Production 32°C Air 21°C Water: 100kg per 24 hrs

Modular Cube Ice: Full Cube = 22mm W x 22mm D x 22mm H / Half Cube = 10mm W x 22mm D x 22mm H

Will Require a Filter

Min incoming water temperature: 4.4°C (40°F)

Max incoming water temperature: 38°C (100°F)

Min incoming water pressure: 1.4 bar (20psi)

Max incoming water pressure: 4.1 bar (80psi)

Optional external drain pump requires its own power supply. They are fitted to the ice machine in factory which will add a few days to the lead time. Please contact us for details.

3 Years Parts and Labour Warranty (5 Years on compressor and evaporator)

Air cooled



Optional SafeIce Ice Machine Cleaning System: SafeIce generates a reactive gas mixture which binds to and eliminates microbes on contact. Photoplasma gas is heavier than air and cascades into your bin, sterilizing your entire machine from the evaporator plate down. Please note that the addition of this will add approx. 5-7 working days to the lead time. Click Here For Video. Please contact us for pricing and to add to your order.



B25 Storage Bin:

762mm W x 787mm D x 711mm H

110kg Storage

Extra large door opening

Built-in scoop holder

One-piece polyethylene bin liners and industrial foam insulation prevent ice from melting

Height-adjustable legs



Combinations with other storage bins are available (please contact us for details):

B40, B55 Bins = No Adaptor Kit Required

B110 Bin = BPF1 (KBT5) Adaptor Kit



Ice-O-Matic Modular Cube Ice Makers are highly reliable and are built with a carefree operation and maintenance system. They produce pure, crystal-clear cube ice for the most demanding foodservice and hospitality needs. They are also perfect on a storage bin or dispenser and are available in either 'Half' or 'Full' cube options.

Model: CIM0335F / CIM0335FA (Full Cube) / CIM0335H / CIM0335HA (Half Cube) & B25 Bin

Please note that all products are shipped directly from the manufacturer / supplier so contact us if you wish to check stock availability.

THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.
