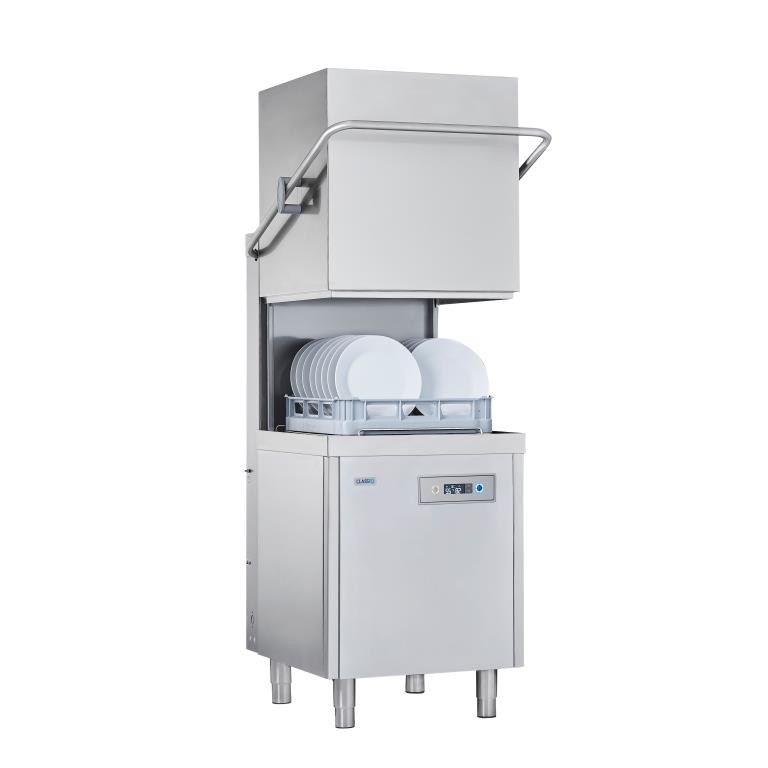

Classeq P500A-12 Pass Through Drain Pump Dishwasher

External Dimensions: 630mm W x 720mm D x 1890-1960mm H (Hood Open) / 1470-1520mm H (Hood Closed)

6.68kW 3x 12Amps ~ 380-415AC/50/3N OR 6.68kW 30Amps ~ 220-240AC/50/1N

Hot Fill Recommended

500mm x 500mm basket

WRAS Type ‘AB’ Air gap (physical air gap which completely prevents the water from entering and contaminating the mains water supply)

Drain Pump Model

P500A-12 / P500A12 / P500A-30 / P500A30

Replacement for H857A

Any questions? Need assistance? Call our helpline on 01603 756134

Product Details

External Dimensions: 630mm W x 720mm D x 1890-1960mm H (Hood Open) / 1470-1520mm H (Hood Closed)

6.68kW 3x 12Amps ~ 380-415AC/50/3N OR 6.68kW 30Amps ~ 220-240AC/50/1N

Hot Fill Recommended

500mm x 500mm basket

WRAS Type ‘AB’ Air gap (physical air gap which completely prevents the water from entering and contaminating the mains water supply)

Drain Pump Model

P500A-12 / P500A12 / P500A-30 / P500A30

Up to 40 racks per hour

1.5 / 3 / 5 minutes per wash cycle

Optional built in chemical pumps (detergent and rinse aid pumps) - integral to the machine; dosing levels can be controlled and altered if required by the machine. If a detergent pump is not selected then an external pump will need to be fitted by a third party chemical supplier

1 Year Warranty

Replacement for H857A

Will require hard-wiring and a water softener

Please note that all products are shipped directly from the manufacturer / supplier so contact us if you wish to check on stock availability.

THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.
