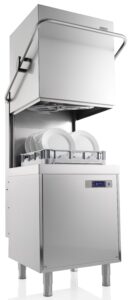

Classeq CP500-16 Pass Through Drain Pump Dishwasher
View Larger
External Dimensions: 635mm W x 699mm D x 1453-1999mm H (712mm D x 2012/2072mm H with optional Steam Recovery Unit)
9.5kW 3x 16Amps 380-415V/3N~/50Hz (On site flexibility to convert 12 and 16 Amp three phase models to 30Amp, single phase)
500mm x 500mm basket
WRAS Compliant: Type AB
Drain Pump Model
Replacement for P500 range
View product video
Any questions? Need assistance? Call our helpline on 01603 756134
Product Details
External Dimensions: 635mm W x 699mm D x 1453-1999mm H (712mm D x 2012/2072mm H with optional Steam Recovery Unit)
9.5kW 3x 16Amps 380-415V/3N~/50Hz (On site flexibility to convert 12 and 16 Amp three phase models to 30Amp, single phase)
500mm x 500mm basket
Theoretical racks per hour: 40
10" Plates per rack: 18
Pint sized glasses per rack: 25
Wash Programmes: 1.5, 3, 5, 7 mins (dish) / 1.5, 2mins (glass)
Wash Temperature: 60°C
Rinse Temperature: 82°C (85°C on utensil wash programme) (Dishwasher) / 70°C (Glasswasher)
Drain Pump
Detergent and Rinse Aid Pumps
WRAS Compliant: Type AB
Rinse Booster Pump
Required Water Pressure: 2.0 bar
Required Water Flow Rate: 4 litres/min
Compatible with Bluetooth app
2 Years Warranty
Replacement for P500 range
Will require hard-wiring and a water softener
Integral water softener model also available
Please note that the second image shows the optional Steam Recovery Unit
Model: CP500-16 / CP500SR-16 (with Steam Recovery Unit)
For Intermediate Use
Please note that all products are shipped directly from the manufacturer / supplier so contact us if you wish to check on stock availability.
THIS IS A COMMERCIAL PRODUCT INTENDED FOR USE ON A COMMERCIAL SITE. WARRANTY TERMS MAY BE AFFECTED IF USED IN A NON-COMMERCIAL ENVIRONMENT. B2B (BUSINESS TO BUSINESS) TERMS APPLY.
Downloads
CP500 Product Brochure
